How to Deploy Planvisage Container App in Linux VM ( Ubuntu) in Azure Cloud using Podman Container Runtime

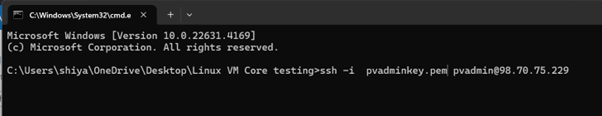

  1. Login to Ubuntu Server using SSH

    From command prompt where private key file is copied (pvadminkey.pem)

    Eg: ssh -i pvadminkey.pem pvadmin@98.70.75.229

    Private Key File Name: pvadminkey.pem

    IP Address : 98.70.75.229

    User Name : pvadmin

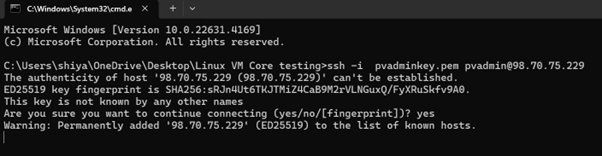

    Type 'yes'

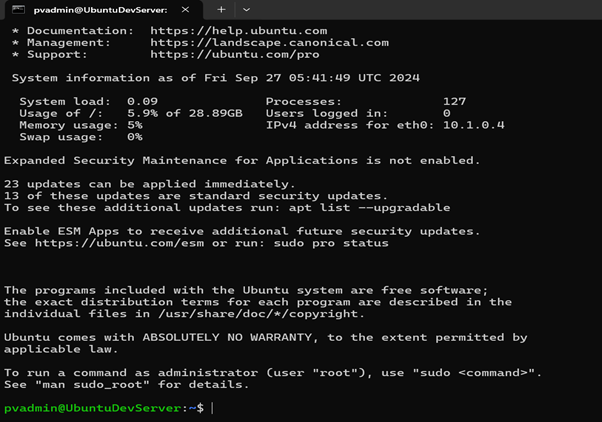

    Now logged in to server using SSH

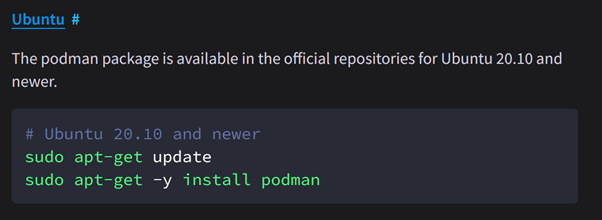

    img 2. Install Podman (Container Run Time)

    Minimum version required : Ubuntu 20.10 and newer

    sudo apt-get update //Update the apt-get to latest
    sudo apt-get -y install podman //Install podman

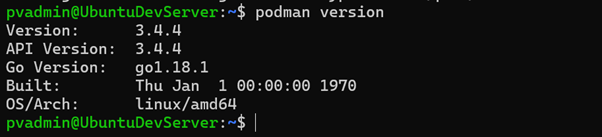

    To check the version of podman installed:


  2. Install Podman Compose Pre requisite - Python

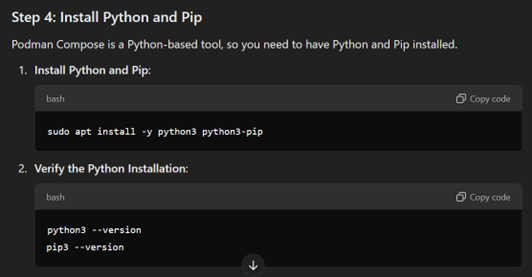

    Install Python

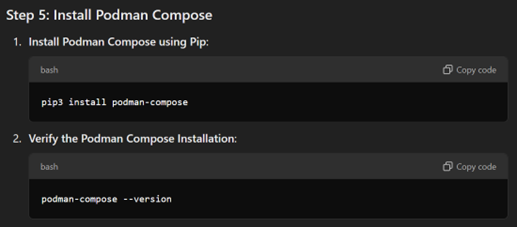

    Install Podman Compose


    Error will show if the path is not updated.

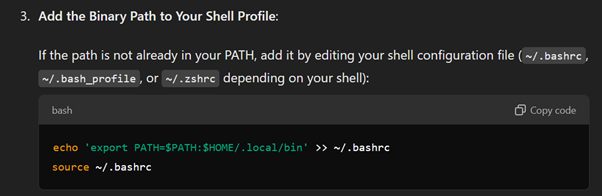

    Update Path using the following commands:

    echo 'export PATH=$PATH:$HOME/.local/bin' >> ~/.bashrc
    source ~/.bashrc


  3. Create docker Compose File & and .env file

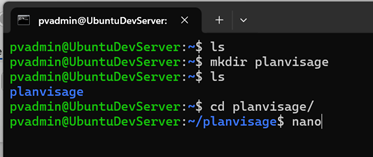

    Create a folder and type nano to open editor

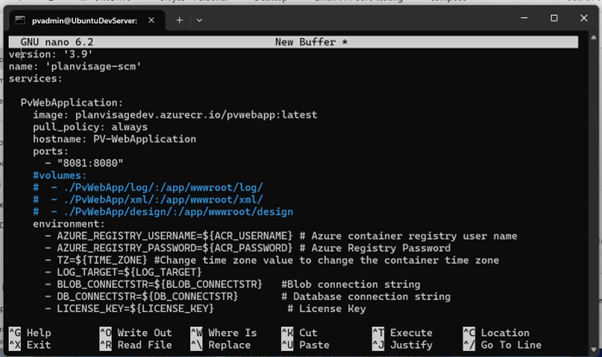

    Copy Paste the compose file content to nano editor

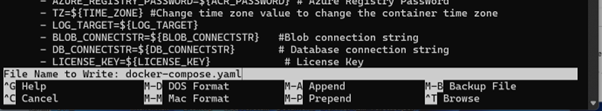

    Ctrl+ X to save, and provide the file name “docker-compose.yaml”


    Do the same for .env file also.

  4. Login to azure Container Registry (ACR)

    Podman login planvisagedev.azurecr.io

    Provide credentials to login to ACR

    Run podman compose using following command:

    podman-compose up

  5. Install nginx in server

    sudo apt update
    sudo apt install nginx


    Application is up now.

  6. Configure Nginx ( to access web application using browser)

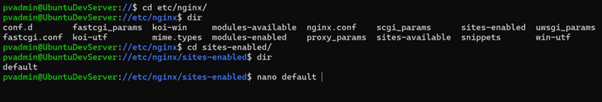

    a. Open config file

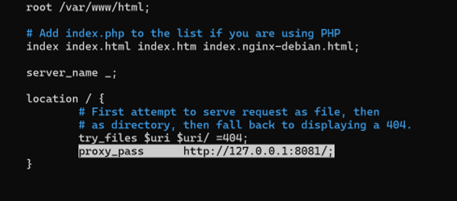

    b. Add the reverse proxy settings to webapplication running at port 8080
    Proxy_pass http://127.0.0.1:8081/;


    c. Restart nginx server

     <strong>sudo systemctl restart nginx</strong>


    Application can be accessed using the domain name.
